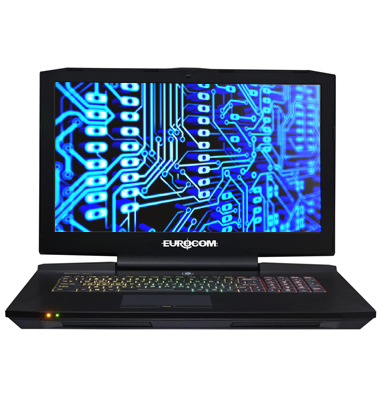

Choice of FHD, QHD up to UHD 3840-by-2160 pixels; 17.3-inch (43.94mm); LCD Display; eDP; 100% AdobeRGB The EUROCOM Sky X9W is heavy duty, high performance workstation-class laptop designed to replace desktop based workstation. It is GPU-and CPU-upgradeable, fully customizable and extremely flexible design, allowing the Sky X9W to be configured with a variety of options including wide range of Quadro GPUs and high performance desktop socket processors. Chipset: Intel Z170 Express VGA Technology: Quadro P5000, P3000, M5000M, K51000M, M4000M, M3000M, K3100M, M1000M or K1100M; GeForce GTX: 980M, 980, 970M, 1060 or 1070; supports 2nd card for PhysX; two MXM 3.0 slots; GPU-upgradeable Processor: socket LGA1151, up to Intel i7-6700K, fully unlocked Memory: up to 64GB; DDR4-2133 or DDR4-2400; 4 SODIMM sockets Display Technology: supports up to 4 active displays (internal LCD and 3 external) via 2x miniDP 1.2 and/or 1x HDMI 2.0 and/or miniDP 1.2 (TB3 port); Nvidia Surround View Storage: up to 32TB with 4 drives; 2x HDD/SSD (SATA3) + 2x M.2 PCIe Gen3 x4/SATA3; RAID 0/1 Communications: 2x 1GbE LAN RJ-45 ports Killer E2400 and WLAN/Bluetooth; Killer DoubleShot X3 Operating Systems: Microsoft Windows: 10, 8.1 and 7; Linux; CentOS Expansion: Docking station available via Thunderbolt 3 Card Reader: 6-in-1 MMC/RSMMC/SD/miniSD/SDHC/SDXC up to UHS-II Keyboard: Illuminated, backlit with customizable 7-colours Security: TPM 2.0, Fingerprint and Kensington Lock Audio System: Sound Blaster X-Fi MB5; external 7.1CH audio output; headphone out, microphone in, S/PDIF and Line-in port; two built-in FORSTER Speakers (2.2W)+ Subwoofer (2.5W) Ports: 1x Thunderbolt 3 (USB 3.1 type C/HDMI 2.0/DP 1.2); 2x miniDP 1.2; 1x HDMI 2.0; 5x USB 3.0 (1x Powered USB AC/DC); S/PDIF; Headphone; Mic; Line-in; 2x RJ45 (LAN) Weight and dimensions: 4.8kg / 10.56lbs; WxDxH 428x308x45mm / 17.12x12.32x1.8-inch

Base Configuration   System and Display   EUROCOM Sky X9W   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $68]   Choose your LCD Display   17.3-inch (43.9cm); 60Hz; UHD; 3840x2160; Matte; Adobe 100% sRGB; eDP 17.3-inch; 120Hz; QHD 2560x1440; Matte; TN; 5ms; 700:1; 400nts; NTSC 72%; eDP; AUO B173QTN01.0 [sub $127] 17.3-inch (43.9cm); 60Hz; FHD 1920x1080; Matte; IPS; 300nts; 700:1; 72% NTSC; eDP; 30pin [sub $326]   Security - ANTI SPYING Package   Choose: optional Factory ANTI SPYING package. Physical Removal of internal Webcam, Microphone and WLAN/Bluetooth Module [add $153] Physical Removal of internal Webcam and Microphone. [add $130]   BIOS: Standard or Unlocked   Standard BIOS   Processor / CPU   4GHz (up to 4.2GHz) Intel Core i7-6700K; 4C/8T; 8MB; 14nm; LGA1151; 91W 3.3GHz (up to 3.9GHz) Intel Core i5-6600; 4C/4T; 6MB; 14nm; LGA1151; 65W [sub $154] 3.4GHz (up to 4GHz) Intel Core i7-6700; 4C/8T; 8MB; 14nm; LGA1151; 65W [sub $77]   Memory Configuration   16GB; 2x 8GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; Micron 16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs [add $46] 32GB; 4x 8GB; DDR4-2400; CL14; 260-pin;1.2V; Kingston HyperX; 4 SODIMMs [add $346] 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs [add $362] 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS [add $362] 64GB; 4x 16GB; DDR4-2400; 260-pin; 1.2V; 4 SODIMMs; G-Skill F4-2400C16S-16GRS [add $823] 64GB; 4x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 4 SODIMMs [add $823]   eXpansion Modules for 2-3 External Monitors   None - Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [add $384]   3D Devices for Precision Engineering   None, Choose from the options below: 3Dconnexion CadMouse for Precision Engineering [add $153] 3Dconnexion SpaceMouse Enterprise for Precision Engineering; 3DX-700056 [add $538]   Primary GPU-1   4GB GDDR5; NVIDIA Quadro M3000M (N16E-Q1); 1024 CUDA; MXM 3.0b; 28nm; 75W 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; MXM 3.0b; 28nm; 100W [add $1154] 4GB GDDR5; NVIDIA Quadro M4000M (N16E-Q3); 1280 CUDA; OpenGL 4.5; MXM 3.0b; 28nm; 100W [add $538] 2GB GDDR5; NVIDIA Quadro M1000M (N16P-Q1); 512 CUDA; 28nm; MXM 3.0a; 40W [sub $385] 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); 768 CUDA; MXM 3.0b; 75W [sub $154] 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); 1536 CUDA; MXM 3.0b; 100W [add $769] 6GB GDDR5; NVIDIA Quadro P3000 (N17E-Q1); 1280 CUDA; OpenGL; MXM 3.1; 16nm; 75W [add $308] 8GB GDDR5; NVIDIA Quadro P4000 (N17E-Q3); 1792 CUDA; OpenGL; MXM 3.1; 16nm; 100W [add $695] 16GB GDDR5; NVIDIA Quadro P5000 (N17E-Q5); 2048 CUDA; OpenGL; MXM 3.1; 16nm; 100W [add $1234]   Secondary GPU-2   Add 2nd GPU for PhysX processing from the list below: 8GB GDDR5; NVIDIA GTX 980M (N16E-GX); 1536 CUDA; 28nm; MXM 3.0b; 100W [add $688] 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); 768 CUDA; MXM 3.0b; 75W [add $612] 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; 28nm; MXM 3.0b; 100W [add $1919] 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); 1536 CUDA; MXM 3.0b; 100W [add $1765] 8GB GDDR5; NVIDIA Quadro P4000 (N17E-Q3); 1792 CUDA; MXM 3.1; 16nm; 100W [add $1461] 6GB GDDR5; NVIDIA Quadro P3000 (N17E-Q1); 1280 CUDA; MXM 3.1; 16nm; 75W [add $1073] 16GB GDDR5; NVIDIA Quadro P5000 (N17E-Q5); 2048 CUDA; MXM 3.1; 16nm; 100W [add $1999]   Thermal Paste: GPU Heatsink   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $23]   Thermal Paste; CPU Heatsink   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $23]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $153] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $288] Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key [add $307] Linux Ubuntu installed; LTS 18.04; USB key [add $150]   Business Productivity Software   None - Choose from the options below Microsoft Office 2024 Home and Student Edition; OEM; MLK; US/Canada [add $138] Microsoft Office 2024 Home and Business Edition; OEM; MLK; US/Canada [add $268]   Keyboard (Language)   US English; QWERTY; Backlit UK English; QWERTY; Backlit [add $77] Alemán / German; QWERTZ; Backlit [add $77] Chinese; QWERTY; Backlit [add $77] Danske / Danish; QWERTY; Backlit [add $77] Español / Spanish; QWERTY; Backlit [add $77] Français / French; AZERTY; Backlit [add $77] Italiana / Italian; QWERTY; Backlit [add $77] Norske / Norwegian; QWERTY; Backlit [add $77] Português / Portugese; QWERTY; Backlit [add $77] Svenska / Swedish; QWERTY; Backlit [add $77] Swiss; QWERTZ; Backlit [add $77]   RAID Configuration   None - Choose from the options below: RAID 0 - for maximum performance; at least 2 physical drives are required [add $73] RAID 1 - for redundancy; at least 2x physical drives are required [add $73]   Internal PCIe NVMe M.2 SSD   Choose your SSD M.2 type 2280 (80x22nm) from the options below: 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $130] 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $130] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $307] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $253] 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s [add $384] 1TB SSD; SAMSUNG 990 Pro or equivalent depending on availability; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [add $845] 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO or equivalent depending on availability [add $692] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $538] 2TB SSD; SAMSUNG 990 Pro or equivalent depending on availability; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s [add $961] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $961] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro or equivalent depending on availability; AES 256-bit Encryption [add $1249] 8TB; NVMe PCIe 5.0; SSD; M.2; 22x80mm; Samsung 9100 Pro; R/W: 14,800 / 13,400 MB/s [add $2307]   Internal PCIe NVMe M.2 SSD   Choose your SSD M.2 type 2280 (80x22mm) from the options below: 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $130] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $253] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $307] 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s [add $384] 1TB SSD; SAMSUNG 990 Pro or equivalent depending on availability; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [add $845] 1TB SSD; PCIe Gen 4.0 x4, NVMe 2.0 ; M.2 2280; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO or equivalent depending on availability [add $692] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $538] 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s [add $961] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro or equivalent depending on availability; w/ AES 256-bit Encryption [add $1249] 8TB; NVMe PCIe 5.0; SSD; M.2; 22x80mm; Samsung 9100 Pro; R/W: 14,800 / 13,400 MB/s [add $2307]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance; minimum 2 physical drives are required [add $58] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $58] RAID 5 setup; 3 physical drives are required [add $58] RAID 10 setup; 4 physical drives are required [add $58] Dual RAID Setup; RAID 0 and RAID 1; 4 physical drives are required [add $73] Multiple Partitions with One O/S - please specify size of each partition [add $58] Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S [add $58]   1st Drive: HDD, SSD or SSHD   1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $131] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm [add $31] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [add $92] 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch [add $285] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [add $246] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $288] 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s [add $592] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [add $365] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [add $365] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $518] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $749] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1057] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1518] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3672] *** Without Hard Drive; with HDD bracket included *** [sub $52]   2nd Drive: HDD, SSD or SSHD   Choose your 2nd HDD/SSD/SHHD from the options below: 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in [add $173] 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in [add $173] 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $304] 256GB SSD; MLC; Micron M1100; SATA3 6Gb/s; 7mm; 2.5 [add $204] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $265] 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch [add $458] 512GB SSD; MLC; Micron M1100; SATA3 (6Gb/s); 7mm [add $422] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $461] 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s [add $768] 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch [add $538] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $538] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $692] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $922] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1230] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1692] 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm [add $3845]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; USB 3.0 [add $307] 24x DVD-RW; External; USB 2.0 [add $115]   Internal Card Reader   6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface   Security: Biometric Device   Built-in Fingerprint Reader   Embedded Security Chip   None, embedded TPM 2.0 encryption motherboard version available Embedded TPM 2.0 Security Chip for Data Encryption [add $115]   Security Cables / Devices:   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $38] Targus Defcon 1 Alarm Device PPA400C [add $38]   Wireless LAN   2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8260; M.2 2230; up to 867Mbps; 2.4GHz/5GHz 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz [add $15] 2-in-1; 802.11ac WLAN + Bluetooth 5; Killer Wireless-AC 1550 [add $46] 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535 [add $15]   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $76]   Built-in Web Camera   2.0 Megapixels; Webcam; Built-in Without Webcam installed [add $45]   HDMI Port(s)   HDMI 2.0 Output Port   Standard Battery (internal)   8-cells Lithium-lon Battery; Easy to change   Choose Extra Battery   None - Choose from the options below 8-cells Lithium-lon Battery; Easy to change [add $138]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Standard AC Adapter   330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A 660W (2x 330W) AC Adapter; Auto-switching;100-240V w/Converter Box (for Maximum XTU/OC/SLI Performance) [add $208] 780W AC Adapter; 110V-250V Auto Switching w/ DC cable; for Maximum Performance [add $134]   Extra Power Cord   None - Choose from the options below 1 Extra; USA/CANADA [add $15] 2 Extra; US/CANADA [add $29] 1 Extra; UK [add $15] 1 Extra; EUROPE [add $15] 1 Extra; SOUTH AFRICA [add $15] 1 Extra; AUSTRALIA [add $15] 2 Extra; AUSTRALIA [add $29] 2 Extra; SOUTH AFRICA [add $29] 2 Extra, EUROPE [add $29] 2 Extra; UK [add $29]   Choose Extra AC Adapter   None - Choose from the options below 330W AC Adapter; 100-240V; w/ 4pin round plug [add $173] 2 extra 330W AC Adapters; Auto-switching; 100-250V [add $346] 780W AC Adapter; 110V-250V; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm; w/ DC cable; for Maximum Performance [add $431]   Carrying Case / Backpack   None - Choose from the options below 17.3in Sport Backpack; Black; Targus Voyager TSB953GL [add $130] 17in Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16in; Targus TCG717 [add $99] 18in; Clamshell Classic Plus; Black Nylon; TARGUS CN418GL [add $145]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $212] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $307] Options   Extra Thermal Pads for M.2; VRAM; RAM   None - Choose from the options below: Set of M.2 SSD Thermal pads 15x15x2mm [add $35]   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [add $307] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [add $384] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [add $538] Accessories   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $61] Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ [add $307]   Car Adapters and Inverters   None - Choose from the options below 700W Portable Power Inverter; 3 AC Outlets (US); Tripplite; 12V AC/60Hz; 12V DC, 1.26kg; 70x207.5x126mm [add $138] 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $92]   Cables, Converters and Adapters   None - Choose from the options below: 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [add $153] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $53]   Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $176] HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP [add $99] 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10 [add $53] 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN [add $38]
