CLEVO P750DM2 / SAGER NP9152 / ORIGIN PC EON15-X
UpgradeDriversFAQs

15.6-inch 4K QFHD 3840-by-2160 or FHD IPS 1920-by-1080 pixels; 60Hz; eDP; LED Backlit

CLEVO P750DM2 / Sager NP9152 (Late 2016) 15.6-inch FHD Display


  • Graphics: Upgradeable MXM 3.0 Desktop; single GPU
  • Processor: Skylake-S LGA1151 socket based Processor (up to I7 6700K)
  • AC Adapter: 230W standard; 330W is optional
  • VGA Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 8x and 10
  • 10 Series cards not supported using Linux at this time
    		•
    UpgradeDriversFAQs
    Currency:

    Base Configuration
      Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions
      - Unlocked BIOS Update Service  [$115]
      Services: Standard BIOS Update
      - Standard BIOS update service  [$95]
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only  [$276]
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA GeForce GTX 1060; N17E-G1;6GB GDDR5;100x124mm; MXM 3.1 w/ power cable  [$384]
      - NVidia GeForce GTX 1070;N17E-G2;8GB GDDR5; 100x124mm; MXM 3.1; w/ power cable  [$538]
      - NVIDIA GeForce GTX 1080; 8GB DDR5; 2560 CUDA; N17E-G3; MXM 3.1  [$768]
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws  [$53]
      Set of screws for X-Bracket/GPU Supporter
      - Set of screws for X-Bracket/GPU Supporter  [$18]
      GPU-1 Power Cable (Primary)
      - P7x DM2/TM GPU DC Power Cable; Primary GPU; 110mm; 43-P7750-210-1  [$53]
      GPU-1 Heatsink (Primary)
      - P770xx Single CPU+GPU Heatsink; 31-P75D3100  [$192]
      Primary GPU / VGA Fan
      - P75xZM/DM/DM2/TM1; GPU fan; 31-P750S-102  [$99]
      Motherboard
      - P750DM2 / NP9152 Motherboard  [$457]
      Power Switch Board
      - Power Switch Board; w/o cable; Model Specific  [$92]
      CPU Heatsink
      - One-Piece CPU/GPU Heatsink  [$276]
      CPU Fan
      - P75xDM/DM2/TM1; CPU Fan; 31-P75D3-202  [$76]

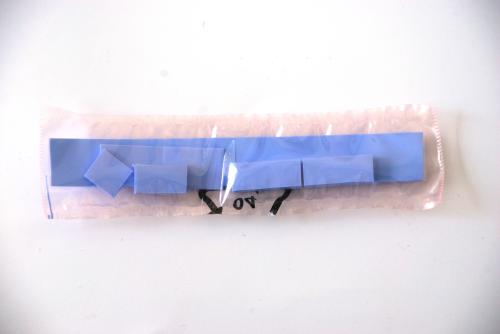

      Extra Thermal Pads
      - Set of thermal pads for NVIDIA desktop GPUs  [$38]
      GPU Heatsink Screws (Primary and Secondary GPU)
      - Set of GPU Heatsink Screws  [$28]
      HDD Bracket Kit
      - CLEVO P775xx/P750xx; Bracket Kit for 2.5" HDD/SSD; 79-P775DM2J-010  [$61]
      LCD Cables
      - P750DM/DM2/TM1; for FHD 60Hz; 43-P7501-042-1C  [$92]
      - P750DM/DM2/TM1 for Samsung UHD; 43-P7501-022-1C  [$92]
      - P750DM/DM2/TM1; for FHD 120Hz; 43-P7501-010-1C  [$115]
      - P750DM/DM2/TM1 for UHD 60Hz SHARP Matte; 43-P7501-060-1C  [$115]
      - P750DM/DM2/TM1 for UHD Sharp GT; 43-P7501-012-1C  [$115]
      - P750DM/DM2/TM1; for FHD 144Hz; 43-P7501-022-1C  [$115]
      LCD Panels
      - 15.6in; FHD 60Hz; MATTE; 700:1; NTSC 72%; LG LP156WF6-SP B1  [$253]
      - 15.6in; FHD; 120Hz; Matte; AUO B156HTN05.2; eDP; 30pin  [$307]
      - 15.6in; FHD 144Hz; Matte; IPS; 9ms; 800:1; NTSC 72%; 300cd/m2; eDP; 40pin; B156HAN07.0  [$330]
      - 15.6in; UHD; 60Hz; Semi-Glossy; 700:1; NTSC 72%; eDP; Samsung LTN156FL02-L01   [$307]
      - 15.6in; UHD 60Hz; MATTE IPS; 1000:1; NTSC 72%; sRGB 100%; eDP; SHARP IGZO LQ156D1JW04   [$461]
      - 15.6in; UHD 60Hz; Glossy; 1000:1; NTSC 72%; sRGB 100%; eDP; SHARP IGZO LQ156D1JX01B   [$381]
      Back LCD Cover
      - Back Cover Assembly (15.6 inch models)  [$162]
      Front Cover
      - Front Cover (15.6-inch models)  [$95]
      Top Case
      - Top Case - 15.6 inch - Model Specific  [$227]
      Touchpad Assembly
      - P750ZM/DM TouchPad  [$143]
      CPU Cover
      - P75x CPU Cover - For P75xZM/DM/DM2/DM3/TM1 Notebooks  [$119]
      Bottom Case
      - Bottom Case - 15.6 inch - Model Specific  [$180]
      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific  [$38]
      Keyboard (internal)
      - Backlit; Alemán / German; QWERTZ  [$128]
      - Backlit; Español / Spanish; QWERTY  [$128]
      - Backlit; Français / French; AZERTY  [$128]
      - Backlit; Italiana / Italian; QWERTY  [$128]
      - Backlit; Norske / Norwegian; QWERTY  [$128]
      - Backlit; Português / Portugese; QWERTY  [$128]
      - Backlit; Svenska / Swedish; QWERTY  [$128]
      - Backlit; Swiss German; QWERTZ  [$128]
      - Backlit; English; USA/Canada; QWERTY  [$128]

    Options

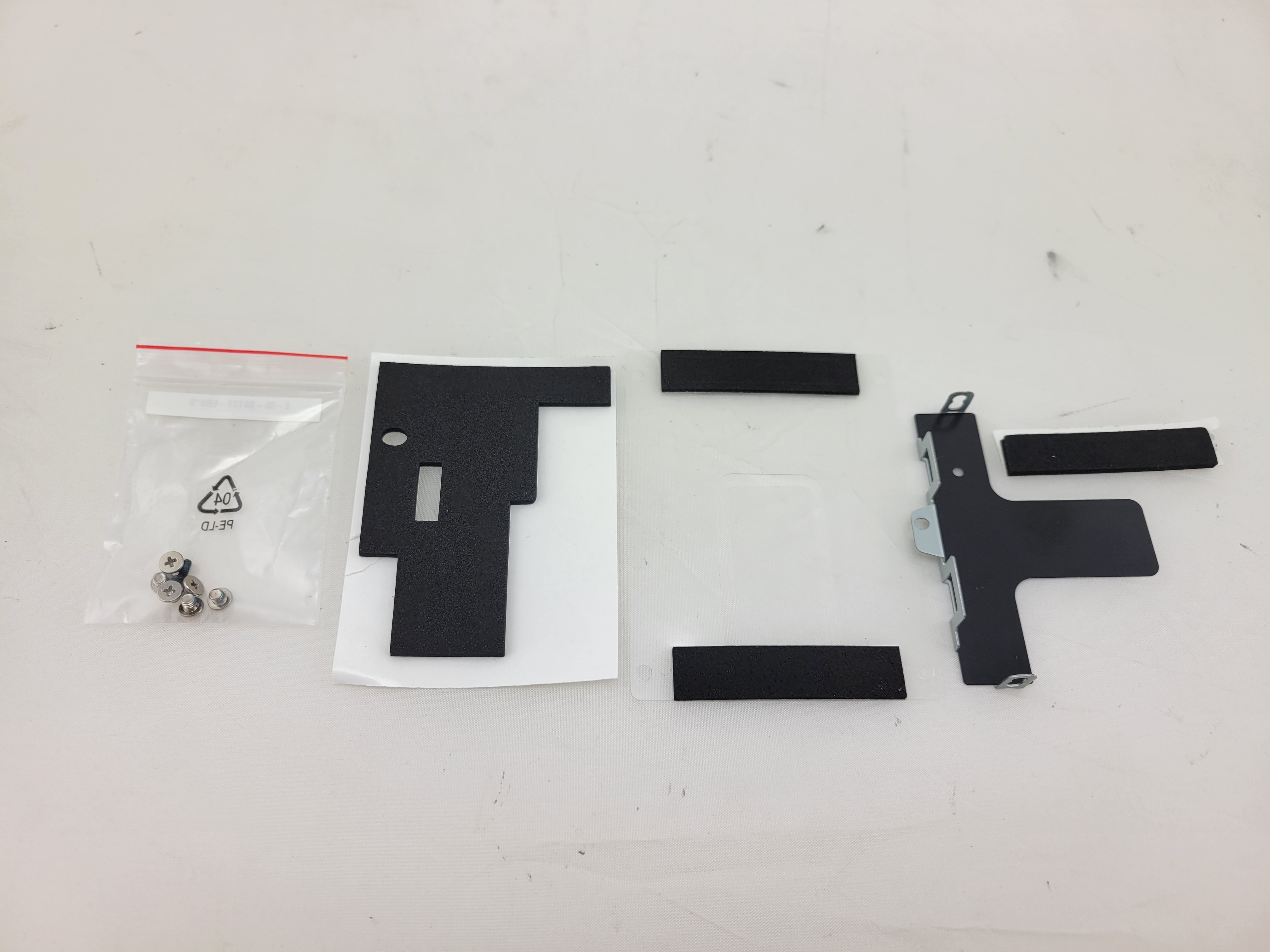

      Extra SSD/HDD Bracket(s) & Cables
      - P750xx/P775xx/P770xx 1st HDD/SSD bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-010   [$119]
      - P750xx/P775xx/P770xx 2st HDD/SSD Bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-030  [$119]

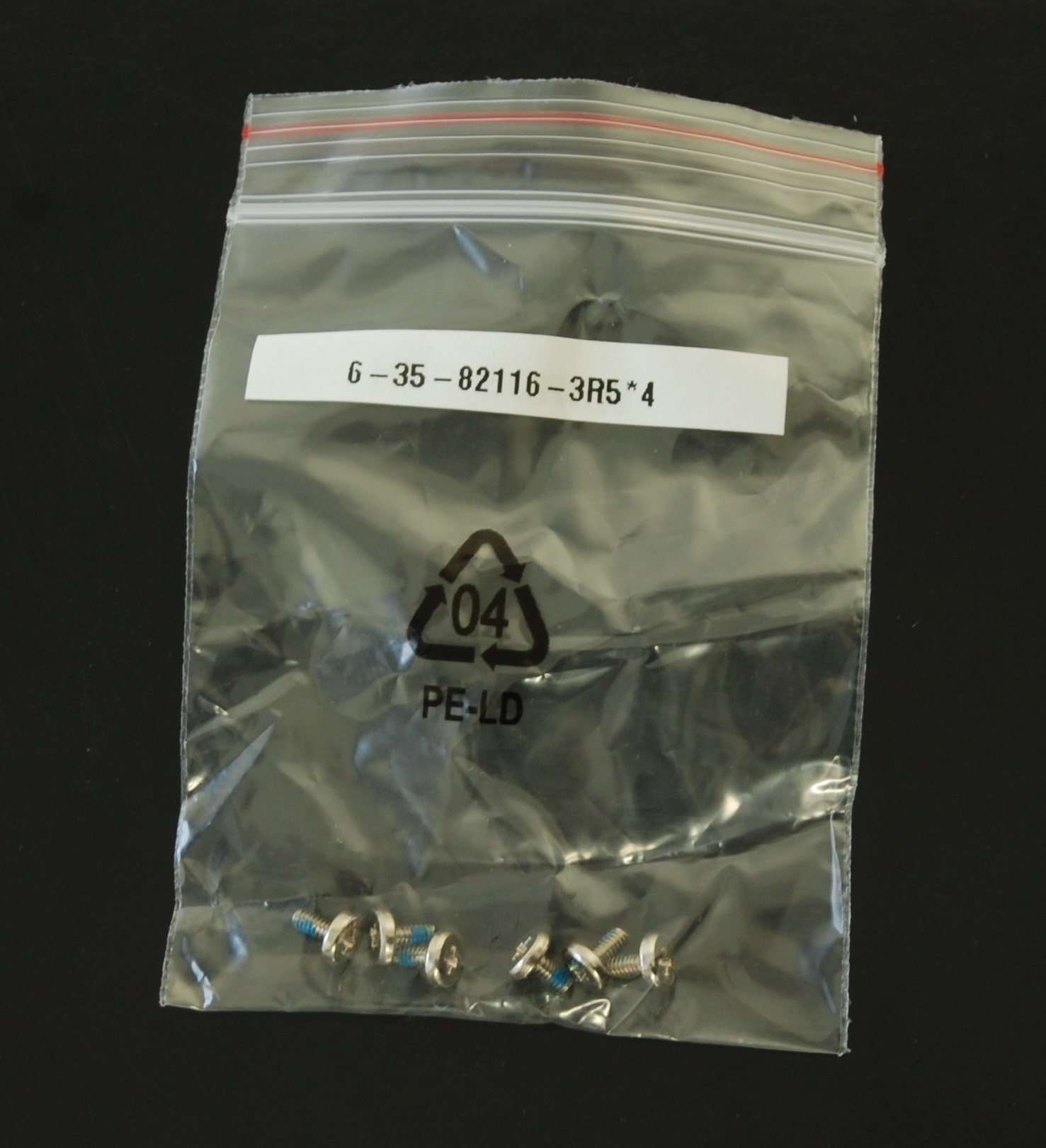

      Screws for internal 2.5in and M.2 drives
      - Set of screws for internal M.2 drive (4pcs)  [$15]
      - Set of screws for internal 2.5in drive (4pcs)  [$15]
      WWAN Antenna
      - Clevo P75x WWAN Antenna - 550MM - p/n 6-23-7P750-030   [$23]
      - Clevo P75x WWAN Antenna - 150MM - p/n 6-23-7P750-040  [$23]
      Laptop Upgrade Kit
      - P750DM2/3 to P750TM1 Upgrade Kit  [$822]

    Accessories
      AC Adapter
      - 280W; 100-240V 50-60Hz Auto-switching (worldwide)  [$135]
      - 230W; 100V-250V; Auto-Switching  [$130]
      - 330W AC Adapter; 100-240V; 50-60Hz; DC 19.5V @ 16.9A; 4pin round plug  [$176]
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable   [$383]
      - Extra DC Cable for EUROCOM 780W AC Adapter; 72.9in / 1.8m  [$119]
      Converter Box for 2x AC Adapters
      - Converter Box for 2x 230W/280W/330W AC Adapters; Clevo/MSI laptops (round plug)  [$82]
      Power Cord
      - 4ft; USA/CANADA  [$22]
      - EUROPE  [$22]
      - UK  [$22]
      - AUSTRALIA  [$22]
      - SOUTH AFRICA   [$22]
      Battery
      - Battery Pack; Li-Ion - 8 Cells  [$138]

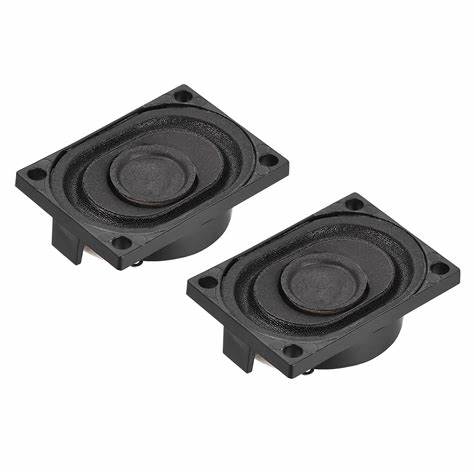

      Laptop Speakers - Right and Left
      - P750xx /P775xx /P870xx; Internal Speakers; Right and Left; 23-5P775-2S0  [$73]
      Power Inverter
      - 300W Portable DC-to-AC Power Inverter; 2 AC Outlets (US); Belkin F5C400-300W; US Edition  [$92]

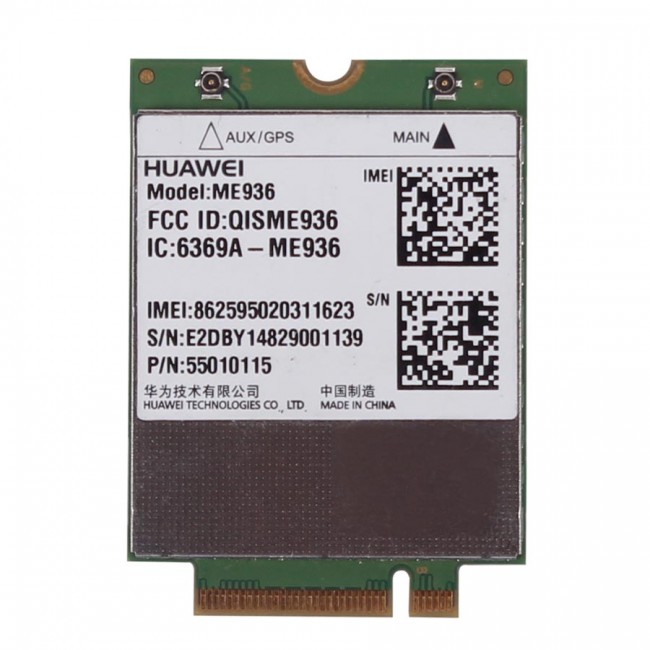

      M.2 LTE Module
      - Huawei ME936 4G LTE M.2 Module p/n - PC-LTE3G4GME936HM2  [$152]
