Alienware 17 (M17 R6 2014)
UpgradeComponentsFAQs



Alienware 17 (Mid 2013) 17.3-inch FHD Display

  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: socket based 4th generation Intel CPU (up to 4910MQ)
  • AC Adapter: 180W standard for 75W GPUs; 240W is required for 100W GPUs
  • VGA Heatsink: standard 2-pipe (75W); 3-pipe (100W) is required for 100W GPUs
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required: A14 (unlocked)

    GTX 9xxM series >>> Windows 8.x and Win 10 only

    Windows 7 is not supported

    AW17 LVDS 60Hz OPtimus (Hybrid)
    System must be running in Optimus mode.
    120Hz only supported using Windows 8x/10 in UEFI Mode
    60Hz is fully supported in Windows 8 and Windows 10

    AW17 eDP 120Hz Discreet
    120Hz only supported using Windows 8x/10 in UEFI Mode
    3D Vision is not supported
    GTX 880m and earlier will support 3D. Any 9 or 10 series cards will not support 3D

  • To use the 10 series cards you must be running in Optimus/Hybrid mode. You must also use the modified heatsink for the GTX 1060


  •    Currency:      Price:

    Base Configuration
      Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions

      Services: Customized Drivers

      Services: Support Consultation w/ Technician

      Services: GPU Upgrade Full Service

      Primary GPU-1 Upgrade ** GPU Heatsink not included **

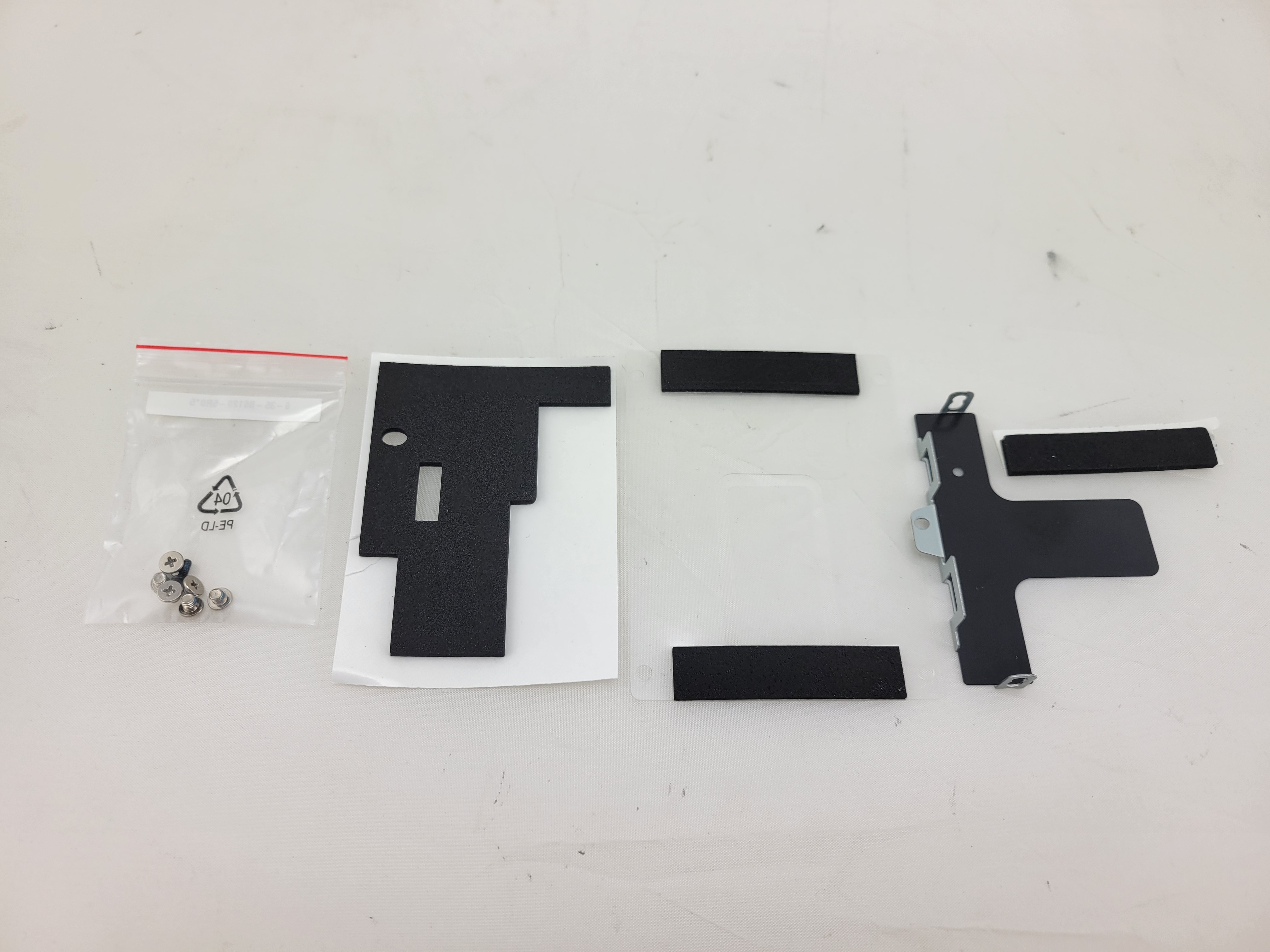

      Extra X-bracket / GPU Supporter

      Set of screws for X-Bracket/GPU Supporter

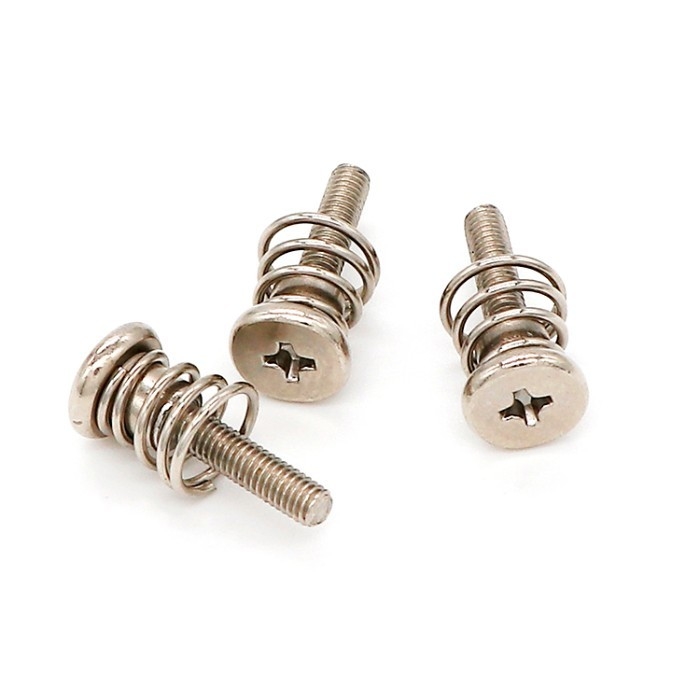

      Set of screws for CPU Heatsink

      GPU-1 Heatsink (Primary)

      Primary GPU / VGA Fan

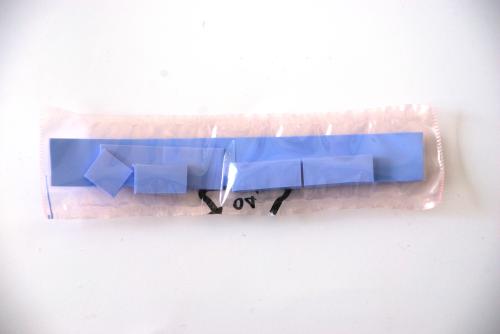

      CPU Thermal Pads

      Extra Thermal Pads

      Thermal Paste for GPU/CPU

      HDD Bracket Kit

      Hinge Right Side

      Keyboard (internal)


    Options
      Screws for internal 2.5in and M.2 drives


    Accessories
      DC Cable for 780W AC Adapter

      AC Adapter

      DC Cable Extension

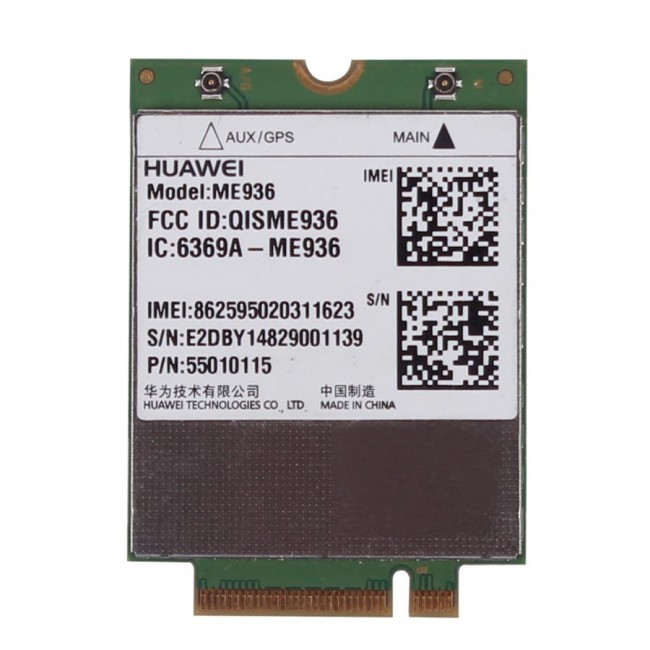

      M.2 LTE Module


       Currency:      Price:
