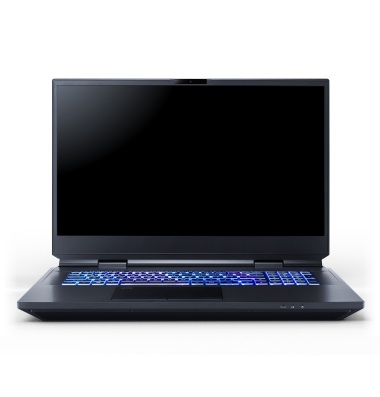

CLEVO X170KM/NP9672M/EON-X (30 series)/XMG ULTRA 17 (ID: XUL17E21)
UpgradeFAQs

17.3in UHD 60Hz; QHD 165Hz; FHD 144, 240, 300Hz

X170KM is powered Intel Z590 PCIe 4.0 chipset, LGA1200 socket based CPUs up to Intel i9-11900K CPU, upgradeable MXM 3.1 V2.0 GPUs up to NVIDIA RTX 3080 and up to 128GB of DDR4-3600 memory. It comes with 4x M.2 slots for up to 32TB of SSD storage, Thunderbolt 4 and a stunning choice of LCD panels ranging up to 300Hz.

  • Chipset: Intel Z590 PCIe 4.0 architecture
  • Processor: socketed desktop LGA1200 CPU, up to Intel i9-10900K / i9-11900K
  • Memory: up to 128GB; DDR4 up to 3600; four 260-pin, 1.2V, SODIMM sockets
  • GPU Technology: NVIDIA GeForce RTX 3080, RTX 3070 and 3060; MXM 3.1 module
  • Storage: Up to 32TB SSD; RAID 0/1/5; 4x physical M.2 NVMe drives; 3x PCIe 3.0 x4; 1x PCIe 4.0
  • Communications: 2.5Gigabit LAN RJ-45 port Killer E3000; supports Killer DoubleShot Pro (w/ Killer WLAN)
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Loaded with Security: TPM 2.0; Fingerprint scanner; Kensington lock
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • Ports: 2x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K); 1x USB-C 3.2 Gen2; 3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight and Dimensions: Weight- 3.8 kg/8.36 lbs; Thickness- 1.76”/44 mm; WxDxH- 399mm x 319mm x 44mm/15.96” x 12.76” x 1.76”
    		•
       Currency:      Price:

    Base Configuration
      Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions

      Services: Standard BIOS Update

      Services: Customized Drivers

      Services: Support Consultation w/ Technician

      Primary GPU-1 Upgrade ** GPU Heatsink not included **

      Set of screws for X-Bracket/GPU Supporter

      GPU-1 Power Cable (Primary)

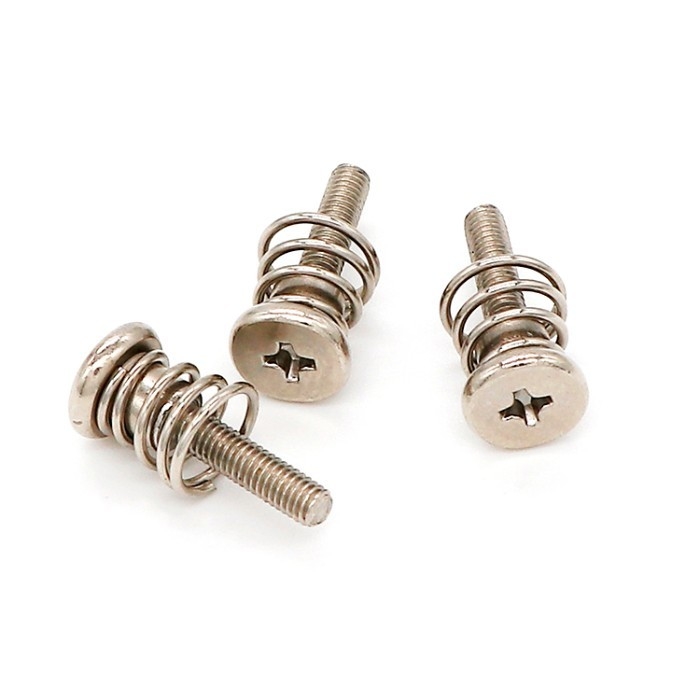

      Set of screws for CPU Heatsink

      Single CPU/GPU Heatsink

      Primary GPU / VGA Fan

      Motherboard

      Power Switch Board

      Audio Board

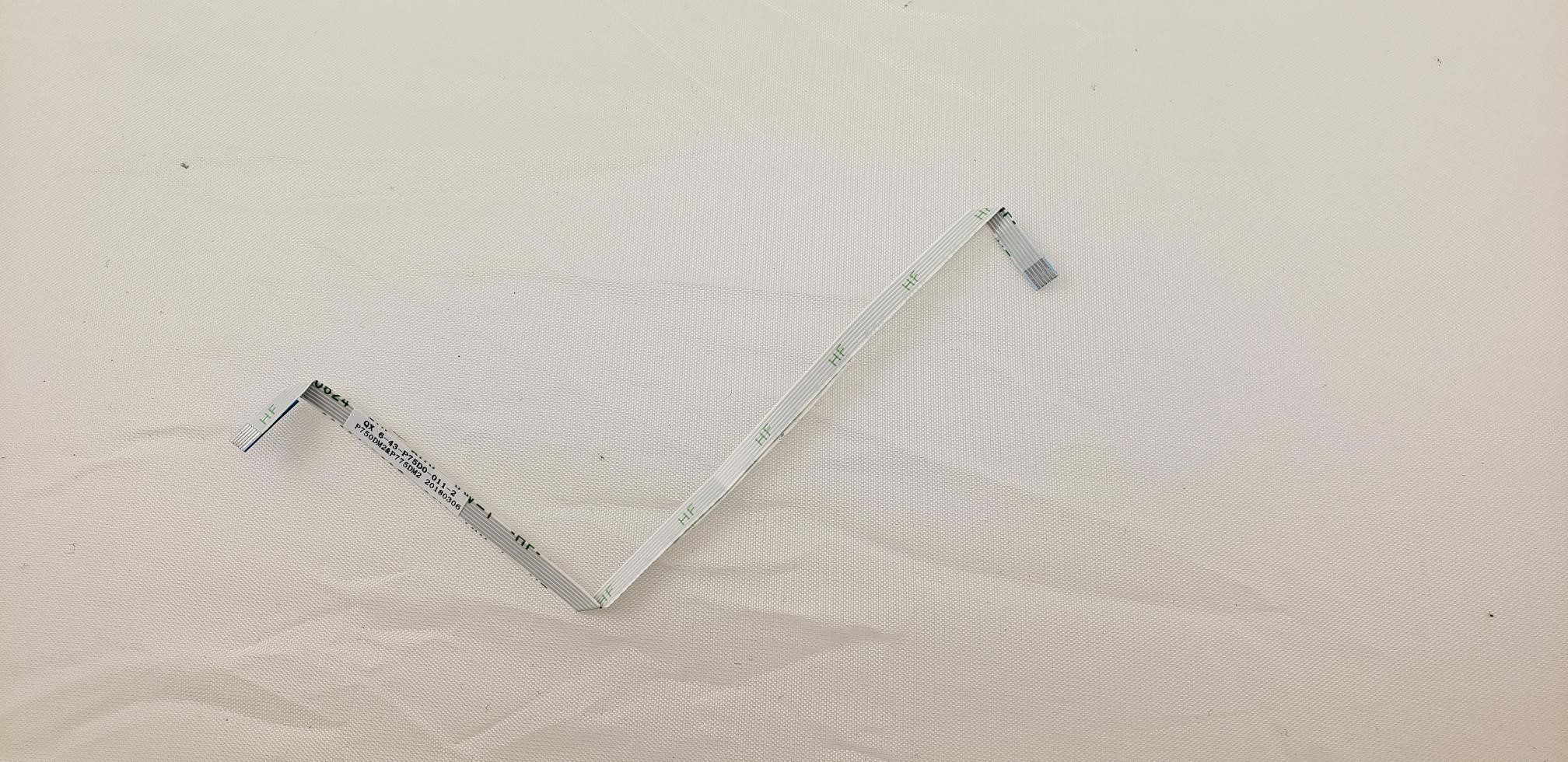

      FFC Cable - Power Board to MotherBoard

      CPU Fan

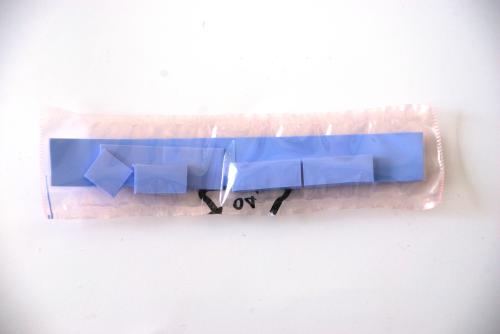

      Extra Thermal Pads

      Thermal Paste for GPU/CPU

      GPU Heatsink Screws (Primary and Secondary GPU)

      LCD Cables

      LCD Panels

      Back LCD Cover

      Front Cover

      Top Case

      Touchpad Assembly

      Top Rear Cover Module

      Bottom Case

      Keyboard (internal)

      Keyboard Controller


    Options
      Power LED Board

      Wireless LAN Cards


    Accessories
      DC Cable for 780W AC Adapter

      AC Adapter

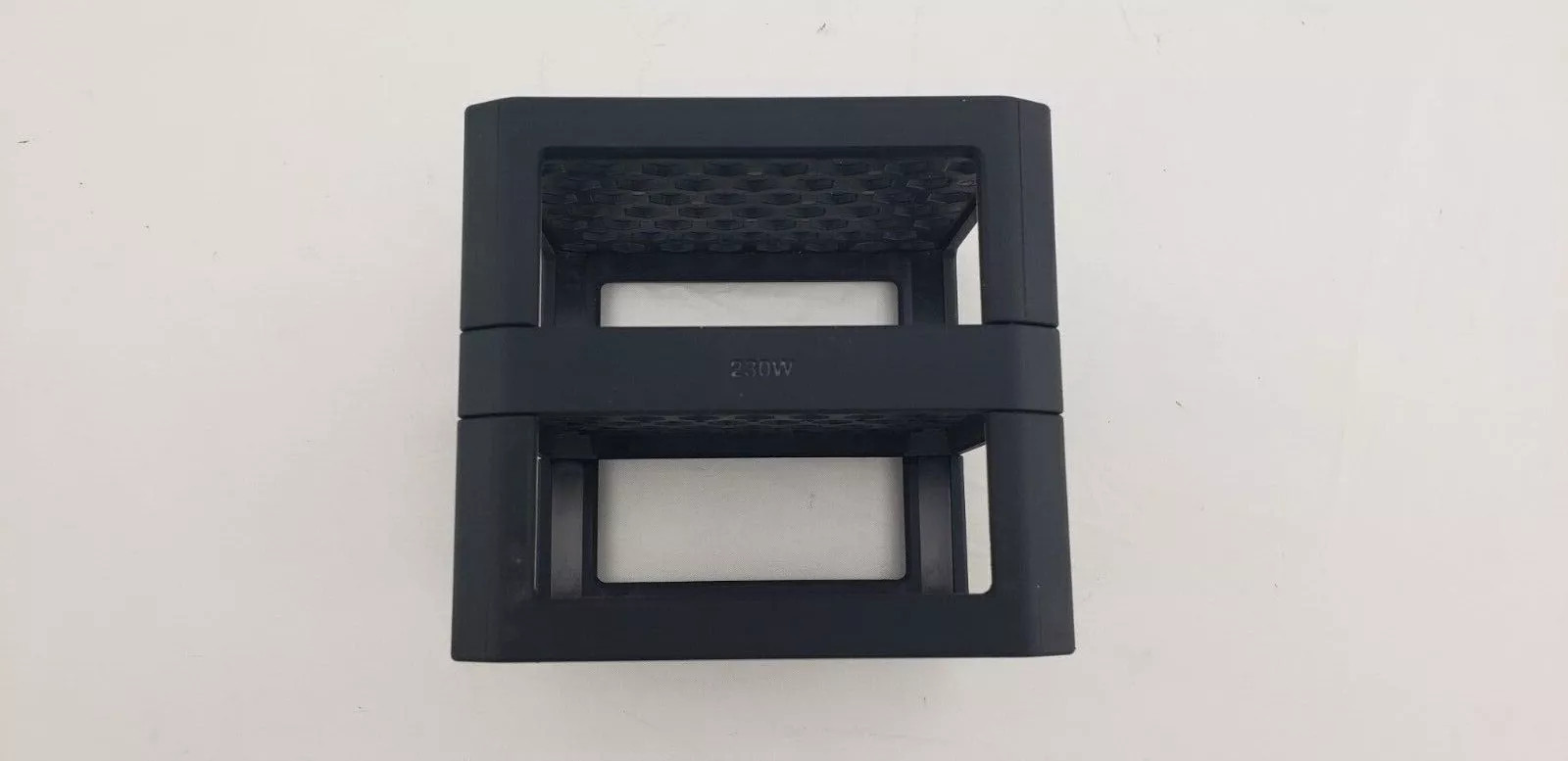

      Dual AC Adapter Holder

      DC Cable Extension

      Power Cord

      Battery

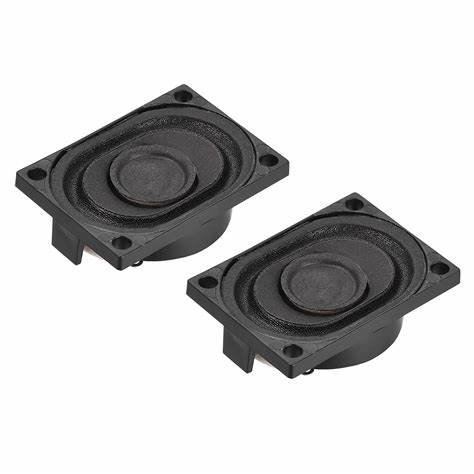

      Laptop Speakers - Right and Left

      Laptop Sub Woofer and Cable

      Rear Lighting Module
