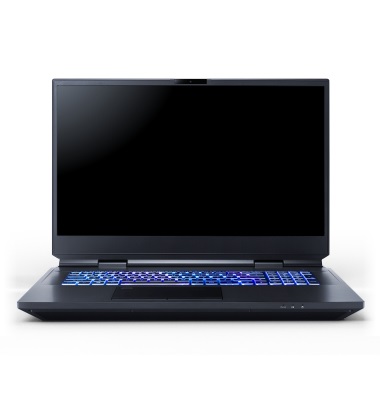

CLEVO X170KM/NP9672M/EON-X (30 series)/XMG ULTRA 17 (ID: XUL17E21)
UpgradeFAQs

17.3in UHD 60Hz; QHD 165Hz; FHD 144, 240, 300Hz

X170KM is powered Intel Z590 PCIe 4.0 chipset, LGA1200 socket based CPUs up to Intel i9-11900K CPU, upgradeable MXM 3.1 V2.0 GPUs up to NVIDIA RTX 3080 and up to 128GB of DDR4-3600 memory. It comes with 4x M.2 slots for up to 32TB of SSD storage, Thunderbolt 4 and a stunning choice of LCD panels ranging up to 300Hz.

  • Chipset: Intel Z590 PCIe 4.0 architecture
  • Processor: socketed desktop LGA1200 CPU, up to Intel i9-10900K / i9-11900K
  • Memory: up to 128GB; DDR4 up to 3600; four 260-pin, 1.2V, SODIMM sockets
  • GPU Technology: NVIDIA GeForce RTX 3080, RTX 3070 and 3060; MXM 3.1 module
  • Storage: Up to 32TB SSD; RAID 0/1/5; 4x physical M.2 NVMe drives; 3x PCIe 3.0 x4; 1x PCIe 4.0
  • Communications: 2.5Gigabit LAN RJ-45 port Killer E3000; supports Killer DoubleShot Pro (w/ Killer WLAN)
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Loaded with Security: TPM 2.0; Fingerprint scanner; Kensington lock
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • Ports: 2x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K); 1x USB-C 3.2 Gen2; 3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight and Dimensions: Weight- 3.8 kg/8.36 lbs; Thickness- 1.76”/44 mm; WxDxH- 399mm x 319mm x 44mm/15.96” x 12.76” x 1.76”
    		•
    UpgradeFAQs
    Currency:

    Base Configuration
      Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions
      - Unlocked BIOS Update Service  [$115]
      Services: Standard BIOS Update
      - Standard BIOS update service  [$95]
      Services: Customized Drivers
      - Customized GPU Drivers H/W ID specific  [$124]
      - Set of Drivers for specific laptop model  [$124]
      Services: Support Consultation w/ Technician
      - Support Consultation Session w/ Technician  [$115]
      - Remote Teamviewer Support Session w/ Technician  [$143]
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA RTX 3060; GN20-E3-A1; 6GB GDDR6; MXM3.0 V2.0  [$807]
      - NVIDIA RTX 3070; GN20-E5-A1; 8GB GDDR6; MXM3.0 V2.0   [$999]
      - NVIDIA RTX 3080; GN20-E7-A1; 16GB GDDR6; MXM3.0 V2.0  [$1461]
      Set of screws for X-Bracket/GPU Supporter
      - Set of screws for X-Bracket/GPU Supporter  [$18]
      GPU-1 Power Cable (Primary)
      - X170KM/SM DC Power Cable for MXM 30x0 GPUs; 43-X170S0-010-1  [$53]
      Set of screws for CPU Heatsink
      - Set of screws for CPU Heatsink  [$18]
      Single CPU/GPU Heatsink
      - X170KM GPU/CPU HEATSINK MODULE w/o fans; 31-X17KN-101  [$368]
      Primary GPU / VGA Fan
      - X170KM/X170SM GPU fan for Dual GPU/CPU Heatsink; 31-X17M2-200; Fan Only  [$99]
      Motherboard
      - X170KM/KM-G Motherboard; 77-X170KMGA-N02A; eDP  [$549]
      Power Switch Board
      - X170KM/X170SM; POWER SWITCH BOARD; 77-X17KS-D02   [$92]
      Audio Board
      - X170KM/X170SM; AUDIO BOARD; 71-X17S8-D11  [$99]

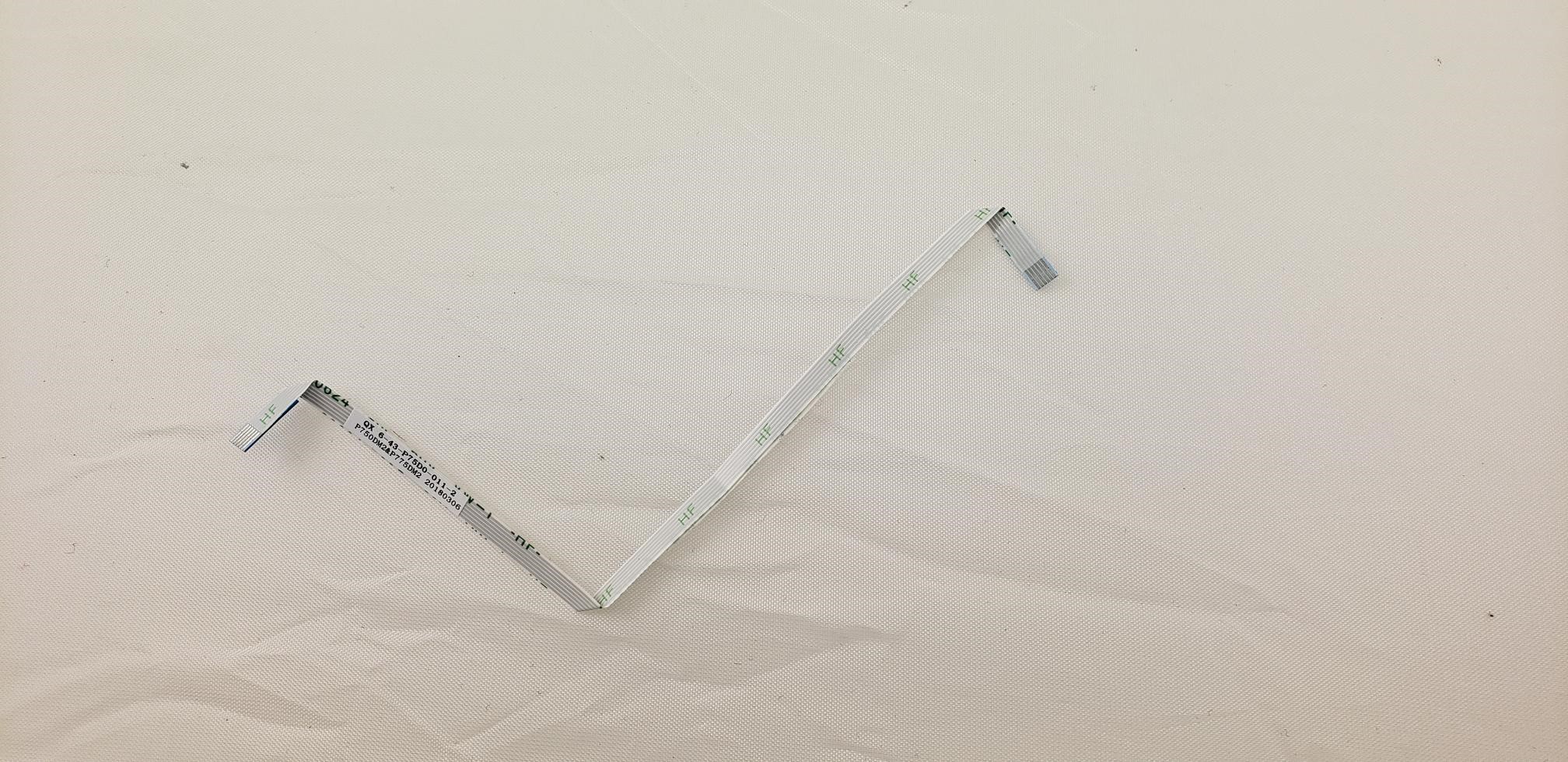

      FFC Cable - Power Board to MotherBoard
      - X170SM/KM FFC Cable for Power to Motherboard; 73mm 5V Pitch 0.5/8pin; 43-X17S0-0B1   [$38]
      CPU Fan
      - X170KM/X170SM CPU fan for Dual GPU/CPU Heatsink; 31-X17M2-100; Fan Only  [$92]

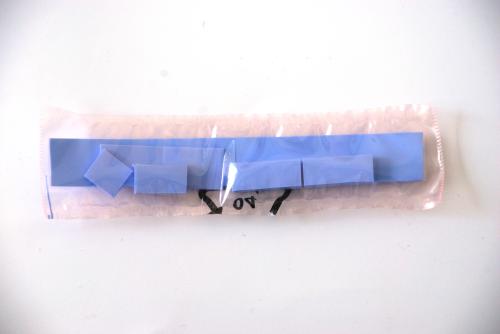

      Extra Thermal Pads
      - X170KM/SM Set of Thermal Pads for CPU/GPU heatsink, Chipset and MOSFETS  [$119]
      - Set of thermal pads for NVIDIA based MXM3 GPUs  [$19]
      - Set of Thermal Pads for M.2 based SSDs (for 2x M.2 SSDs)  [$27]
      Thermal Paste for GPU/CPU
      - Thermal Grizzly KRYONAULT for CPU/GPU; 1 Tube 1gram  [$45]
      GPU Heatsink Screws (Primary and Secondary GPU)
      - Set of GPU Heatsink Screws  [$28]
      LCD Cables
      - LCD Cable for AUO B173HAN05.1; 43-X17K1-021-N  [$92]
      - LCD Cable for UHD 60Hz; AUO B173ZAN03.0; 43-PB701-011-1N/43-X17K1-011-N  [$99]
      - LCD Cable for QHD 165Hz; BOE NE173QHM-NY2; 43-X17K1-011-1N  [$92]
      LCD Panels
      - 17.3in; FHD 300Hz; eDP; 40pin; 100% sRGB; AUOB173HAN05.1  [$538]
      - 17.3in (43.9cm); UHD 60Hz; Matte; 1200:1 contrast; 100% sRGB; eDP; AUO B173ZAN03.0  [$615]
      - 17.3in (43.9cm); 165Hz QHD 2560x1440; Matte; 1000:1; 100% sRGB; eDP 40-pin; BOE NE173QHM-NY2  [$538]
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)  [$172]
      Front Cover
      - Front Cover (17.3-inch models)  [$95]
      Top Case
      - Top Case - 17.3 inch - Model Specific  [$288]
      Touchpad Assembly
      - X170KM/SM; PC70 Touchpad; Synaptics; 49-X17S3-011-G  [$143]
      Top Rear Cover Module
      - X170SM/X170KM; TOP REAR COVER MODULE; 39-X17S2-022-G   [$92]
      Bottom Case
      - X170SM/X170KM Bottom Case; 39-X17K3-011  [$180]
      Keyboard (internal)
      - Backlit; English; USA/Canada; QWERTY  [$128]
      - Backlit; Français / French; AZERTY  [$128]
      - Backlit; Italiana / Italian; QWERTY  [$128]
      - Backlit; Español / Spanish; QWERTY  [$128]
      - Backlit; UK English; QWERTY  [$128]
      - Backlit; Japan; QWERTY  [$128]
      Keyboard Controller
      - Keyboard Controller - Clevo X170SM/KM  [$92]

    Options
      Power LED Board
      - X170KM-G LED BOARD V2.0 pén - 6-77-X17K4-D02   [$82]
      Wireless LAN Cards
      - 2-in-1; Intel BE200; Wi-Fi 7 (802.11ax) + BT 5.4; WLAN Module; M.2 2230; M.2 CNVio2; up to 5.8 Gbps (320MHz,4096QAM)   [$115]
      - 2-in-1; Intel AX200; WiFi 6 802.11ax + BT 5.2; up to 2.4Gbps; WLAN Module; M.2 2230; Wi-Fi(PCIe), BT(USB)  [$61]
      - 2-in-1; Intel AX201; WiFi 6 802.11ax + BT 5.2; WLAN Module; M.2 2230; M.2 CNVio2; up to 2.4Gbps  [$61]

    Accessories
      DC Cable for 780W AC Adapter
      - DC Cable for Clevo X170SM/KM; dual square connectors; 152cm / 5ft   [$153]
      AC Adapter
      - 280W; 100-240V 50-60Hz Auto-switching (worldwide)  [$135]
      - 2 x 280W; 100-240V 50-60Hz Auto-switching (worldwide)  [$269]
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; with Dual DC cable  [$457]

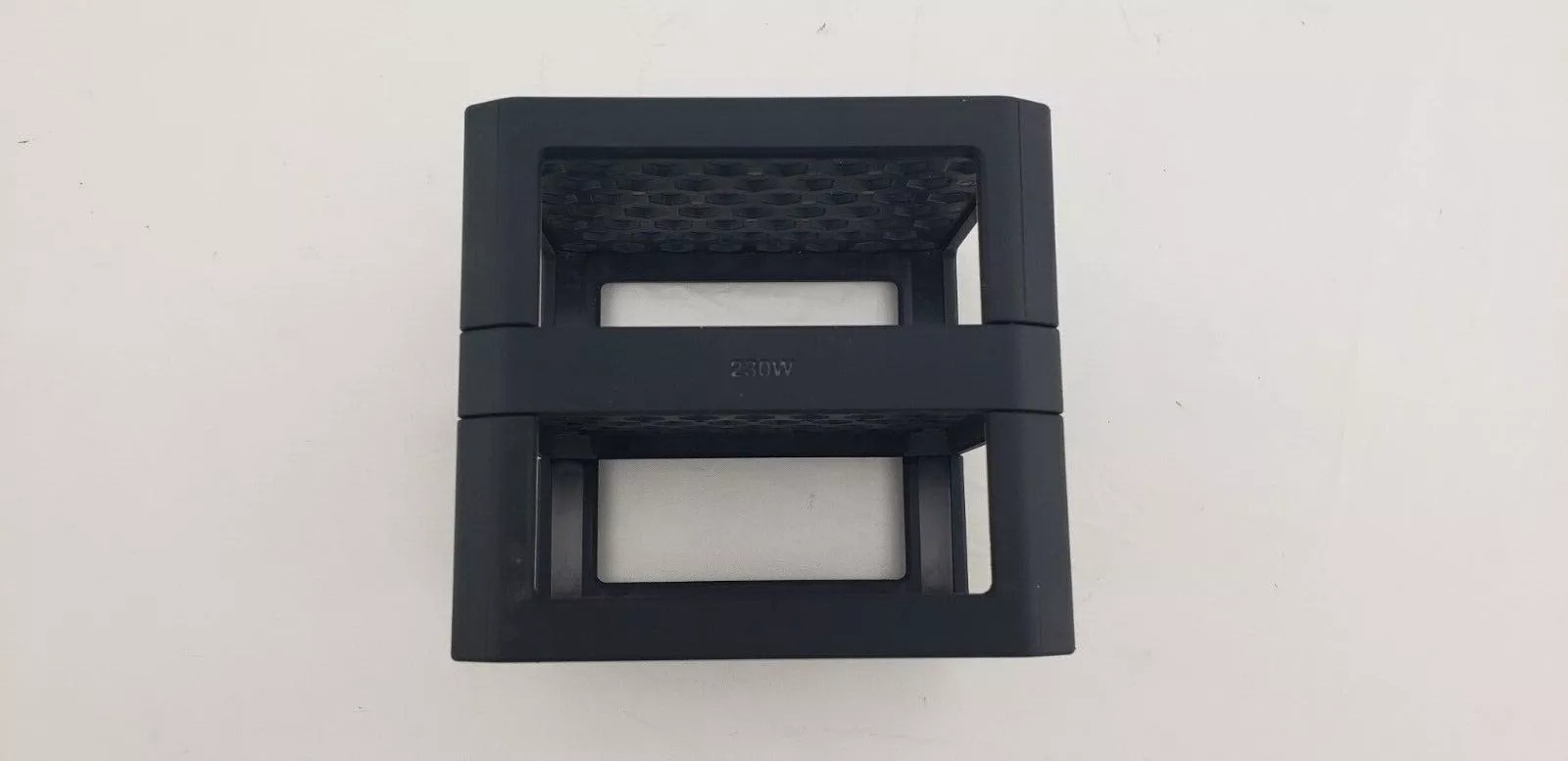

      Dual AC Adapter Holder
      - Dual AC Adapter Holder - 2 x 280 Watt Clevo X170xx  [$15]
      DC Cable Extension
      - Universal DC Cable 6ft Extension  [$76]
      Power Cord
      - 4ft; USA/CANADA  [$22]
      - UK  [$22]
      - EUROPE  [$22]
      - AUSTRALIA  [$22]
      - SOUTH AFRICA   [$22]
      Battery
      - Battery Pack; Li-Ion - 8 Cells  [$138]

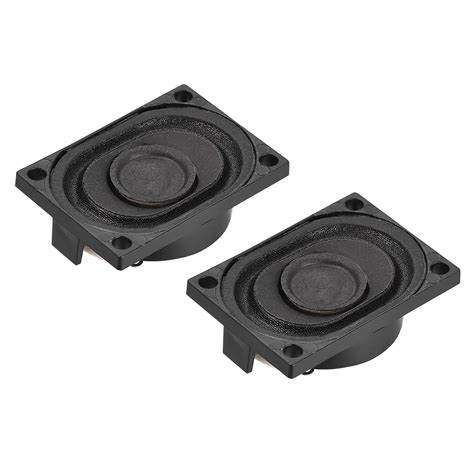

      Laptop Speakers - Right and Left
      - X170KM/X170SM; SPEAKER+CABLE R&L Kit; 23-5X17S-0S1-G   [$112]
      Laptop Sub Woofer and Cable
      - X170KM/X170SM; SUBWOOFER+CABLE; 23-5X17S-0W1-G   [$68]
      Rear Lighting Module
      - X170SM-G -REAR LIGHTING MODULE - p/n - 6-78-X170SMG3-020  [$99]
